Schneider LADT2 Delay Timer Relay, On-Delay/Off-Delay, Clip-On Aux Module

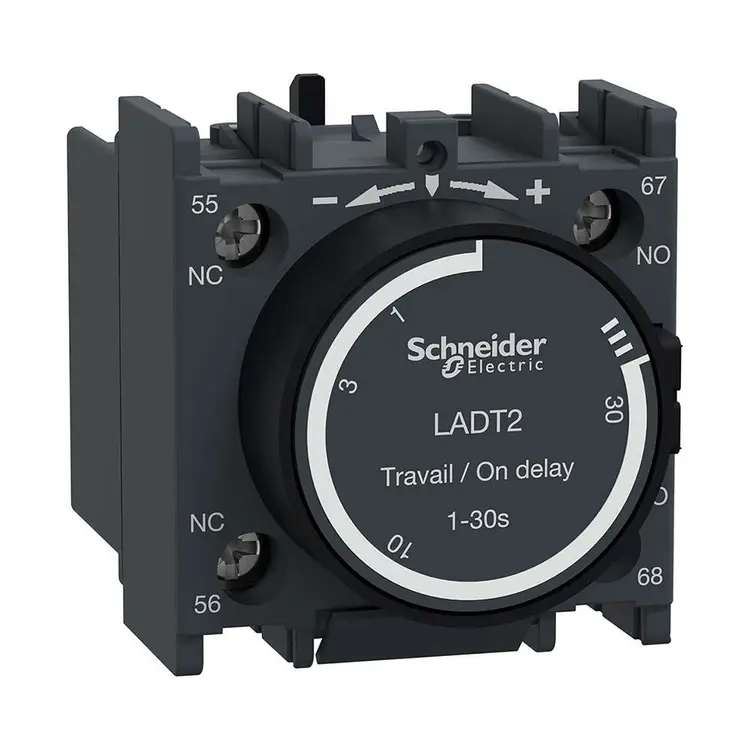

Schneider LADT2 Delay Timer Relay (On-Delay Auxiliary Module)

The Schneider Electric LADT2 Delay Timer Relay is a high-quality clip-on auxiliary module designed for TeSys D contactors. It provides precise on-delay timing control, making it ideal for motor control circuits, automation systems, and sequential operations in industrial applications.

?? Key Features & Benefits

? On-Delay Timer Function
Provides adjustable delay when energized, allowing controlled start-up of equipment and reducing mechanical stress.

? Adjustable Time Range (0.1 – 30 Seconds)
Offers flexible timing control with easy adjustment via knob for different applications.

? 1NO + 1NC Contact Configuration
Includes one normally open and one normally closed contact for versatile control wiring.

? Clip-On Front Mounting Design
Quick and secure installation directly onto compatible TeSys D contactors without additional tools.

? High Voltage & Current Rating
Supports up to 690V AC and 10A, ensuring reliable performance in demanding environments.

? Durable Pneumatic Timing Mechanism
Built with robust internal components for long operational life and consistent timing accuracy.

? Compact & Space Saving
Slim design allows easy integration into control panels without occupying extra space.

? Multi-Standard Certified
Complies with IEC, UL, CSA and other international standards for safety and reliability.

? Ideal Applications

• Motor Control Panels
• Industrial Automation Systems
• HVAC Systems
• Sequential Machine Operations
• Pump Control Systems
